BEP Ball Float Steam Traps rugged, simple & sturdy &trouble free operation.
The plug valve type discharge orifice of BEP steam traps ensure efficient & maintenance free operation for years without any steam leakage.
Increasing level of the condensate opens the outlet orifice & decreasing level closes the outlet orifice proportionately.

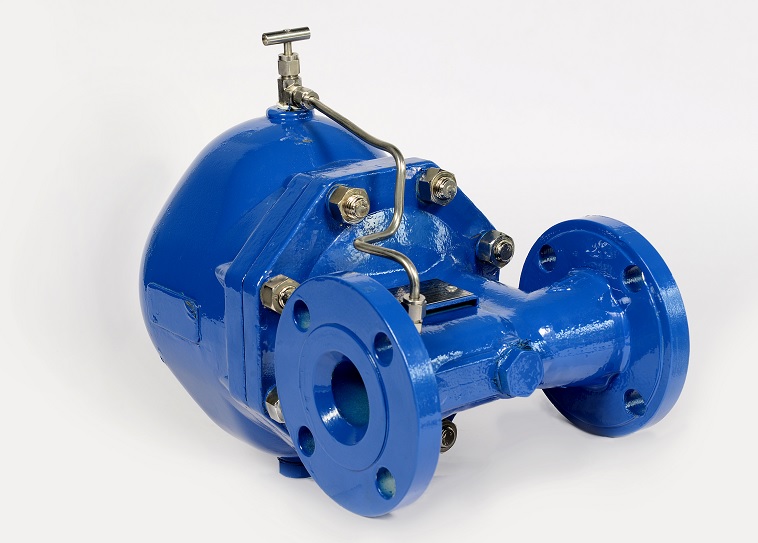

Product Images
BEP Ball Float Steam Traps rugged, simple & sturdy &trouble free operation.
The plug valve type discharge orifice of BEP steam traps ensure efficient & maintenance free operation for years without any steam leakage.
Increasing level of the condensate opens the outlet orifice & decreasing level closes the outlet orifice proportionately.
The discharge of the condensate is proportionate to the rate of condensate accumulation. BEP Traps can handle high starting condensate loads & are also suitable for very low condensate. The special design of float mechanism allows the steam trap to work at very low differential pressure i.e. 0.01 Bar & discharges the condensate even at 95% back pressure.
BEP Ball Float Steam Traps are available for high pressure as well as high discharge capacity applications.
Pressure Range - Upto 160 Bar.
Discharge Capacity - Single Trap upto 48500 Kg/Hr.
Sizes - 15mm to 100mm.
End Conn - Screwed / Socket Weld End / Flanged
For more information of material of construction / Size please refer the Product Details
Product Range - Ball Float Steam Traps
BFT - Ball Float Steam Trap Application: for Condensate Removal from steam
Y - Product in Manufacturing
| SR. NO. |
SIZE NB |
MODEL | PRESS | CONSTRUCTION | END CONNECTIONS | MATERIAL OF CONSTRUCTION | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BAR | HORIZONTAL | RIGHT ANGLE | 4-WAY | SCREWED |
SOCKET WELD |
FLANGED | C.I. | C.S. FAB |
WCB CAST |
CF 8M CAST |
|||
| 1 | 15 | 1216/1316 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
| 2 | 15 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 3 | 15 | 2016/2116 | 16 | Y | Y | Y | Y | Y | Y | Y | |||
| 4 | 20 | 1216/1316 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
| 5 | 20 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 6 | 20 | 2016/2116 | 16 | Y | Y | Y | Y | Y | Y | Y | |||
| 7 | 25 | 1216/1316 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | Y | |
| 8 | 25 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 9 | 25 | 2016/2116 | 16 | Y | Y | Y | Y | Y | Y | Y | |||
| 10 | 40 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 11 | 40 | 2016/2116 | 16 | Y | Y | Y | Y | Y | Y | Y | |||
| 12 | 50 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 13 | 50 | 2016/2116 | 16 | Y | Y | Y | Y | Y | Y | Y | |||
| 14 | 65 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 15 | 80 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 16 | 100 | 1016/1116 | 16 | Y | Y | Y | Y | Y | Y | Y | Y | ||
| 17 | 15 | 1240/1340 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 18 | 15 | 1040/1140 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 19 | 15 | 2040/2140 | 40 | Y | Y | Y | Y | Y | Y | ||||
| 20 | 20 | 1240/1340 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 21 | 20 | 1040/1140 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 22 | 20 | 2040/2140 | 40 | Y | Y | Y | Y | Y | Y | ||||
| 23 | 25 | 1240/1340 | 16 | Y | Y | Y | Y | Y | Y | Y | |||
| 24 | 25 | 1040/1140 | 16 | Y | Y | Y | Y | Y | Y | Y | |||
| 25 | 25 | 2040/2140 | 16 | Y | Y | Y | Y | Y | Y | ||||
| 26 | 40 | 1040/1140 | 40 | Y | Y | Y | Y | Y | Y | ||||
| 27 | 40 | 2040/2140 | 40 | Y | Y | Y | Y | Y | |||||
| 28 | 50 | 1040/1140 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 29 | 50 | 2040/2140 | 40 | Y | Y | Y | Y | Y | Y | ||||
| 30 | 65 | 1040/1140 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 31 | 80 | 1040/1140 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 32 | 100 | 1040/1140 | 40 | Y | Y | Y | Y | Y | Y | Y | |||
| 33 | 15/20/25 | 1063/1163 | 63 | 63 | Y | Y | Y | Y | Y | Y | Y | ||
| 34 | 40/50 | 1063/1163 | 63 | 63 | Y | Y | Y | Y | Y | Y | Y | ||
| 35 | 15/20/25 | 10100/11100 | 100 | 100 | Y | Y | Y | Y | Y | ||||
| 36 | 15/20/25 | 10160/11160 | 160 | 160 | Y | Y | Y | Y | |||||
| 37 | 15/20/25 | 10320/11320 | 320 | Y | Y | Y | |||||||
